Longarm Studio & Room Clearance Calculator
A 10-foot longarm frame doesn't just need 10 feet of wall space — you need room to walk in front, trace pantographs from the back, and load quilt rolls from the sides. Enter your room dimensions below to see a real-time 2D layout simulation.
1. Room Dimensions
2. Machine & Frame Setup
Handi Quilter Amara 24 with 10ft Frame
From $15,495 — 0% Financing Available ($323/month)
Fits comfortably in your room dimensions. Quilt king-size projects with 24" of throat space.
The 4 Hidden Space Requirements Most Quilters Overlook
When shopping for a longarm, it's easy to look at a 10-foot frame specification and assume an 11-foot bedroom will work. In practice, longarm frames require three-dimensional clearance that static furniture does not.
✓ Stand-Up Frame Clearance Checklist
- Front Operator Zone (30" min): You need room to walk back and forth along the full track while holding the ergonomic handlebars.
- Rear Pantograph Zone (24" min): If you plan to trace paper patterns from the back, you need space to walk and stand behind the frame.
- Side Roll Loading (18" min): The metal rollers extend slightly beyond the frame legs. You need clearance to insert batting rolls and adjust fabric ratchets.
- Door & Window Swings: Ensure bedroom or closet doors don't strike the metal frame legs when swung open.
✗ Signs Your Room is Better for a Sit-Down Table
- Total room width is less than 9 feet (leaves under 2 feet of total walking room with a frame).
- You quilt in a multi-purpose room (such as a guest bedroom or home office).
- You need to easily move the station against a wall when not in use.
- You have neck, hip, or knee discomfort that makes standing for 3-4 hours challenging.

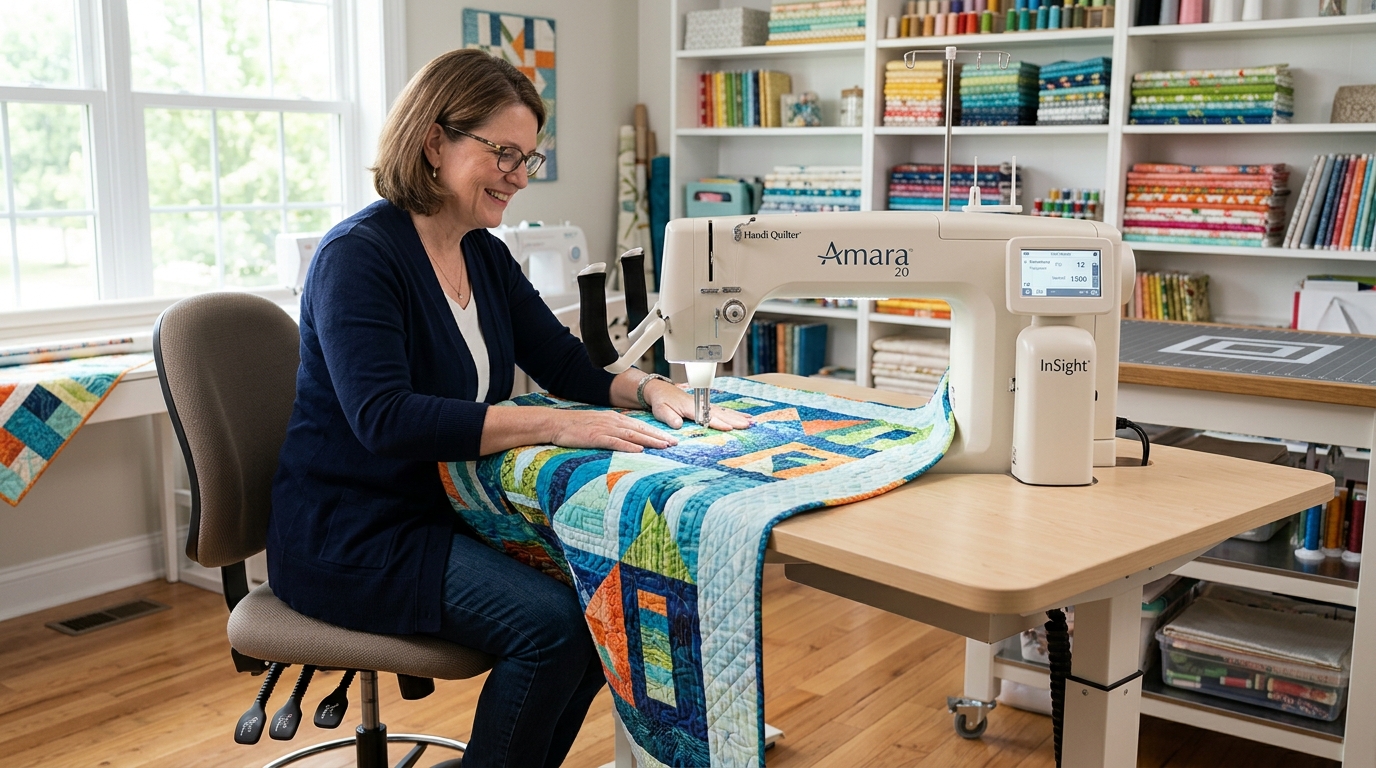

Consider the Handi Quilter Amara 20 Sit-Down
If your room is under 11 feet wide or doubles as a guest bedroom, a sit-down longarm delivers the exact same 20-inch throat capacity and optical stitch regulation without eating up your entire floor plan.
Studio Planning FAQ
Can I put a longarm frame against a wall?
You can push the back of the frame against a wall only if you never plan to do rear-guided pantograph quilting (tracing laser patterns from behind). However, you still need about 4–6 inches of wall clearance so the moving machine head does not collide with the wall or power cords when pushed to its furthest rear travel.
How heavy are longarm frames? Will they damage my flooring?

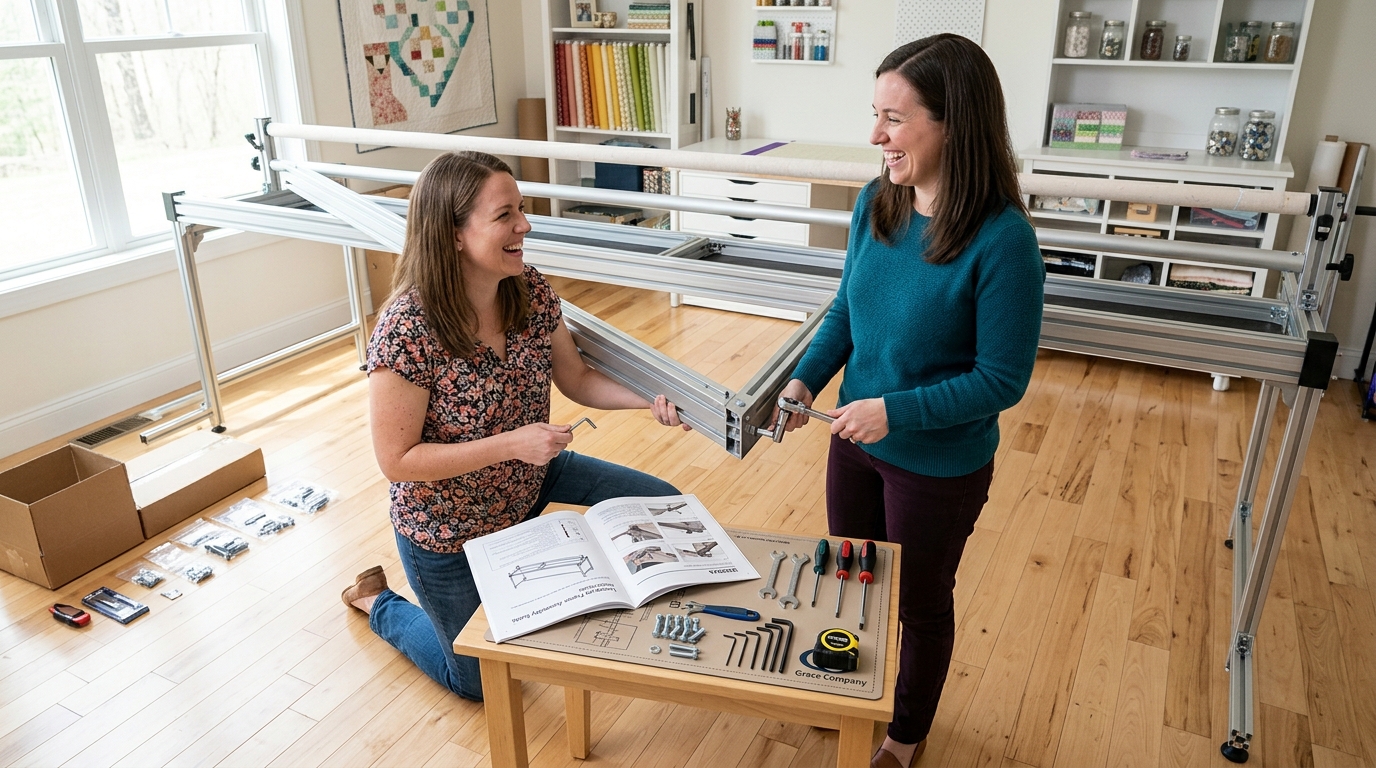

A typical 10-foot Handi Quilter Gallery2 or Studio2 frame with the machine weighs approximately 180 to 240 pounds distributed across 4 to 6 heavy steel legs. They are completely safe for standard residential wooden joist subfloors. On hardwood floors, placing heavy-duty felt caster pads beneath each leg protects the wood from scratching.
What if I buy a 10ft frame and later move to a bigger house?
Handi Quilter frames are modular. The Gallery2 and Studio2 frames can be expanded from 10 feet to 12 feet at any point in the future with an official 2-foot frame extension kit sold by SewingMachinesPlus, allowing your machine to grow with your studio space.
